ℹ️ Product Overview
The HYDRAMEM Membrane Bio Reactor (MBR) system integrates biological treatment processes with membrane filtration in a single unit, eliminating the need for separate clarifiers and tertiary filtration steps. This results in a smaller physical footprint and a more streamlined wastewater treatment process.

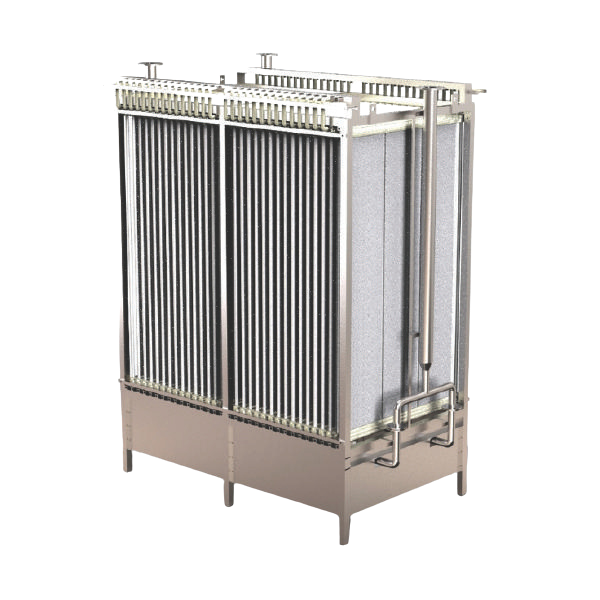

Featuring Hollow Fiber PVDF (Reinforced) membranes with an Outside-In flow configuration, the HM MBR 40 PVDF module delivers treated water that is suitable for immediate reuse — meeting stringent quality standards while minimizing energy consumption.
📋 Product Model
| # | Model | Description | Application | Download PDF |
|---|---|---|---|---|
| 1 | HM MBR 40 PVDF | High Performance MBR Module | Industrial, municipal & commercial STP/ETP | 📄 View More |
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Material | Hollow Fiber PVDF (Reinforced) |
| Flow Direction | Outside-In |
| Module Type | Submerged MBR Module |
| Design Strength | High Strength with Robust Design |
| Energy Consumption | Low Energy Design |
| Effluent Quality | Pathogen-free, reuse-ready |
| Footprint | Compact — reduced footprint vs. conventional STP |
| Certification | ISO 9001 certified manufacturing |
⚖️ MBR vs. Conventional Treatment
| Parameter | MBR Technology | Conventional STP |
|---|---|---|
| Footprint | Compact (50–70% less) | Large area required |
| Effluent Quality | Reuse-ready, low turbidity | Secondary treatment only |
| Pathogen Removal | Effective membrane barrier | Limited |
| Process Units | Single integrated unit | Multiple stages required |
| Sludge Production | Lower sludge volume | Higher sludge generation |
| Automation | Easy to automate | Complex multi-stage control |
⭐ Key Features
- Hollow Fiber PVDF (Reinforced) — exceptional strength and durability
- Outside-In flow configuration for efficient solids retention
- High strength and robust design for continuous industrial operation
- Low energy consumption compared to conventional treatment
- Consistent effluent quality for direct reuse
- Reduced system footprint — eliminates secondary clarifiers
- Pathogen-free discharge meeting regulatory standards
- Combines biological treatment + membrane filtration in one
🏭 Applications
- Institutions, Hospitals & Health Care facilities
- STP for IT Parks, SEZs and Commercial Hubs
- Industrial Wastewater Recycle (ETP)
- Housing Complexes & Townships
- Municipal & Desalination pre-treatment
- Food & beverage industry effluent treatment
- Pharmaceutical and chemical plant wastewater
FAQs — HYDRAMEM MBR Systems
A Membrane Bio Reactor (MBR) is an advanced wastewater treatment technology that combines biological treatment (activated sludge) with membrane filtration in a single integrated unit. It eliminates the need for separate secondary clarifiers and tertiary filtration steps, resulting in a smaller physical footprint and consistently high-quality, reuse-ready effluent.
The HYDRAMEM MBR module is the HM MBR 40 PVDF — a high-performance submerged module featuring Reinforced PVDF Hollow Fiber membranes with an Outside-In flow configuration. It is ISO 9001 certified and manufactured by Ion Exchange (India) Limited at their Verna, Goa facility.
HYDRAMEM MBR systems can reduce the physical footprint of a wastewater treatment plant by 50 to 70% compared to conventional activated sludge STP processes, making them ideal for space-constrained industrial, commercial, and urban sites.
HYDRAMEM MBR modules are used in institutions, hospitals and healthcare facilities, STPs for IT parks and SEZs, industrial effluent treatment plants (ETP), housing complexes and townships, municipal and desalination pre-treatment, food and beverage effluent treatment, and pharmaceutical and chemical plant wastewater management.
Yes. The HYDRAMEM HM MBR 40 PVDF module produces pathogen-free, low-turbidity effluent that is suitable for direct reuse. The reinforced PVDF hollow fiber membrane acts as a reliable barrier against bacteria, viruses and suspended solids, meeting stringent regulatory discharge and reuse standards.
Global Elementum Enterprises LLP is an authorized dealer of HYDRAMEM (Ion Exchange India Ltd.) based in Chennai, Tamil Nadu. Contact them at +91 99623 26944 or sales@globalelementum.com for pricing, availability and technical support. Pan-India delivery is available.
