Nano Filtration (NF) Membranes

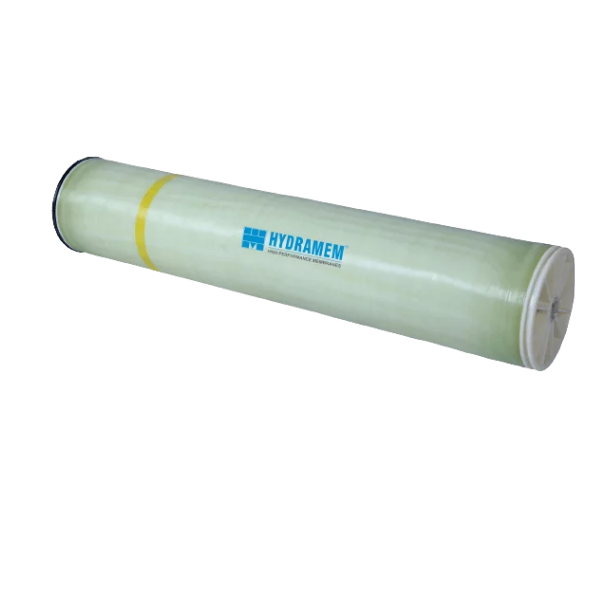

HYDRAMEM NF Membrane Products
HYDRAMEM Cross Linked Fully Aromatic Polyamide thin Film Composite Nano Filtration Elements (NFE) — designed with a hard outer shell for industrial applications. Providing high stability for temperature and pH with superior bivalent ion rejection.
What is a Nano Filtration (NF) Membrane?
Nano Filtration (NF) membranes are semi-permeable membranes that operate between Ultrafiltration (UF) and Reverse Osmosis (RO) in terms of filtration range and selectivity. They provide high rejection of bivalent ions such as calcium (Ca²⁺), magnesium (Mg²⁺) and sulphate (SO₄²⁻) while allowing monovalent ions to pass selectively. This characteristic makes NF membranes ideal for water softening, selective ion removal, and industrial concentration and separation processes.
HYDRAMEM NF Elements are designed with a hard outer shell for demanding industrial environments. They offer high stability for both temperature and pH variations, making them uniquely suited for softening, selective ion removal and industrial concentration processes.
Which industries use HYDRAMEM NF Membranes?
HYDRAMEM NF Elements serve a wide range of industrial applications requiring selective bivalent ion rejection:
- Brackish water softening without full demineralization
- Dye desalting and recovery in the textile industry
- Textile brine treatment and recycling
- Chemical salt recovery and recycling processes
- Dairy industry concentration and fractionation
- Pharmaceutical process separation and purification
- Industrial process water conditioning
📋 Product Range — Nano Filtration Elements
| # | Model | Element Size | Key Feature | Download PDF |
|---|---|---|---|---|
| 1 | HM 4040 NFE 9620 | 4" × 40" | 96% bivalent rejection, 4" compact | 📄 View More |
| 2 | HM 8040 NFE 9840 | 4" × 40" | 98% bivalent rejection, high performance | 📄 View More |
| 3 | HM 8040 NFE 9620 | 8" × 40" | High flow, 96% bivalent rejection | 📄 View More |
| 4 | HM 8040 NFE 9840 | 8" × 40" | High flow, 98% bivalent rejection | 📄 View More |
Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Type | Cross Linked Fully Aromatic Polyamide thin Film Composite |
| Bivalent Ion Rejection | 96% – 98% |
| Element Type | NFE (Nano Filtration Element) |
| Available Sizes | 4" × 40" and 8" × 40" |
| Outer Shell | Hard outer shell for industrial use |
| pH Stability | High stability across wide pH range |
| Temperature Stability | High thermal stability |
| Certification | ISO 9001 certified manufacturing |
Key Features
- Hard outer shell for robust industrial performance
- Higher rejection for bivalent ions (Ca²⁺, Mg²⁺, SO₄²⁻)
- Selective permeation — allows monovalent ions to pass
- High stability for both temperature and pH extremes
- Ideal for softening without full demineralization
- Available in both 4" and 8" element sizes
- Manufactured at ISO 9001 certified facility
